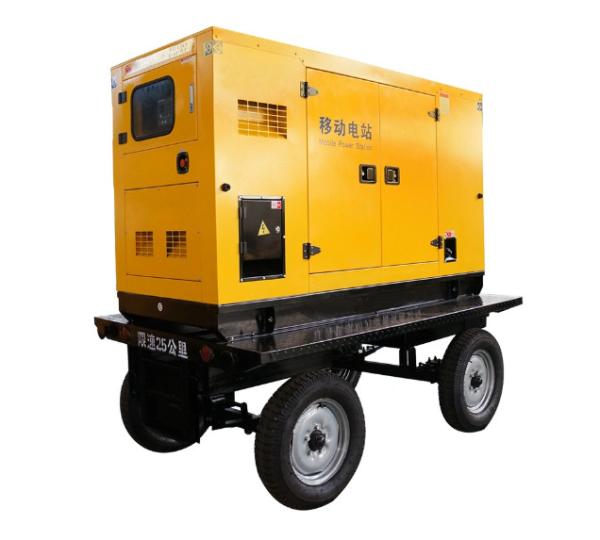

    30kw 40kVA Three Phase Diesel Generator Mobile Wheels Silent Towed

    Ask Lasest Price
    Brand Name : Bilon
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Set/Sets per Month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    30kw 40kVA Three Phase Diesel Generator Mobile Wheels Silent Towed

    30kw 40kVA AC Three Phase Diesel Generator Mobile on Wheels Silent Generator Towed

    1. With all the advantages of our silent generator. Suitable for outdoor works.
    2. Equipped with warning lamp according to transport safety standards.
    3. Trailer diesel generator is available with single or tandem axles, and surge or electric brakes can best fit your needs.
    4. Trailer-mounted and skid-application fuel tanks are both filled through a locking fuel door on the generator cabinet. With Brushless, Self-excited, IP23, insulation class H alternator. 24V DC start motor and storage battery.
    5. 40ºC radiator as standard, 50ºC is optional. 8-hour operation base tank.
    6. Key start control panel, and auto-start control panel for choice.

    Genset DateAltitude≤1000m
    Temperature-15+40ºC
    ≤60%≤80%
    ModelYD34
    Rated frequency/speed50HZ/1500RPM
    Rated voltage400/230V
    Power factor0.8
    Prime power32KW/40KVA
    Standby power34KW/42KVA
    Max current61A
    Product Size (L*W*H)2300*1500*2400 mm
    Product Weight1600kg
    Fuel tank100L
    Noise level (@7m)<=75dB
    PackagePE film
    ColorYellow
    Engine DataEngine BrandYangdong Power Co.
    Engine modelY4105D
    Prime output power38/1500 kW/RPM
    Number of cylinders4 Vertical in-line
    Bore×Stroke105*118 mm
    Displacement4.087 L
    Cycle4 stroke
    Fuel injection modeDirect injection
    Fuel consumption rate(100%)9.63L/hr
    Fuel consumption rate(75%)7.56 L/hr
    AspirationNaturally Aspirated
    Compression ratio18:1
    Lubricating capacity8.0 L
    Cooling methodWater cooled
    Speed governorMechanical speed governor
    Starting modelDC12V Electric start
    Battery12V 60Ah
